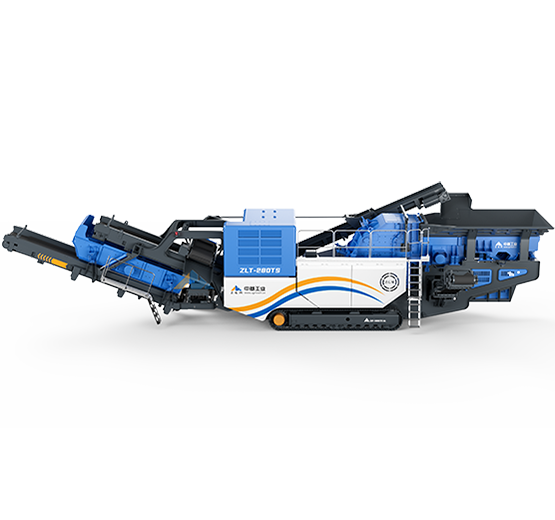

The ZLT Series Crawler Mobile Impact Crusher features a large feed opening, enabling efficient processing of bulky materials with strong crushing capacity and wide adaptability.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining
The ZLT Series Crawler Mobile Impact Crusher features a large feed opening, enabling efficient processing of bulky materials with strong crushing capacity and wide adaptability. Its integrated structural design ensures compactness, high efficiency, and enhanced stability and reliability by reducing component connections complexity. The crawler chassis provides excellent mobility on rough terrain, allowing quick site relocation. With modular components, production lines can be flexibly configured for optimized workflow and diverse operational needs.
Innovative integrated crushing chamber design allows smoother material flow, preventing blockages and improving efficiency.
Handles various large-sized materials, ensuring smooth feeding, rapid crushing, and sufficient production capacity for diverse crushing tasks.

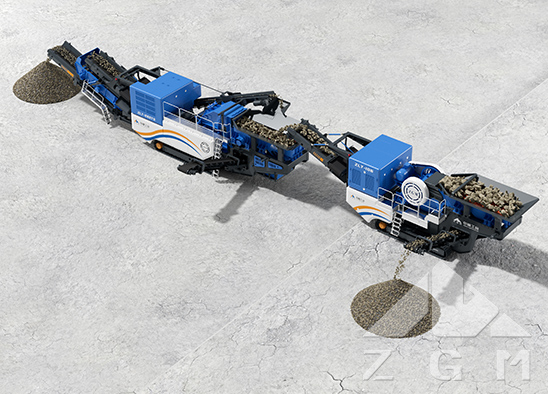

Modular design enables easy and quick installation, facilitating rapid site deployment. The overall equipment is highly mobile, significantly enhancing work efficiency.
High-wear-resistant plates are used in the material force-bearing areas, ensuring a robust and wear-resistant structure. The intelligent pre-screening system increases production capacity by 30%.
| Model | ZLT280 | ZLT280S | ZLT380 | ZLT380S |
| Hopper Volumn(m³) | 6 | 6 | 7 | 7 |
| Feeding Height(mm) | 3900 | 3900 | 4250 | 4250 |
| Max. Feeding Size(mm) | 600 | 600 | 600 | 600 |
| Feeding Capacity(t/h) | 450 | 450 | 450 | 450 |
| Model of Impact Crusher | P6S280 | P6S280 | P6S380 | P6S380 |
| Return Screen Length×Width(mm) | / | 1600×4200 | / | 1600×4200 |
| Layer of Screen | / | 1 | / | 1 |
| Output Size(mm) | 25-100 | 25-100 | 25-100 | 25-100 |
| Chassis Feeder Length×Width(mm) | 1500×2500 | 1500×2500 | 1500×2500 | 1500×2500 |
| Main Belt Width(mm) | 1100 | 1100 | 1200 | 1200 |
| Transfer Belt Width(mm) | / | 500 | / | 500 |
| Return Belt Width(mm) | / | 500 | / | 500 |
| Final Product Belt Width(mm) | / | 1200 | / | 1200 |
| Final Product Belt Stacking Height(mm) | 3400 | 3100 | 3400 | 3100 |
| Whole Machine Power(kw) | 239.4 | 264.4 | 299.4 | 324.4 |
| Main Equipment Power(kw) | 200 | 250 | 280 | 280 |
| Processing Capacity(t/h) | 200-400 | 200-400 | 250-500 | 250-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 52 | 60 | 60 | 68 |
| Transportation Dimensions Length × Width × Height(mm) | 16500×3800×3900 | 17500×3800×3900 | 17000×3800×3950 | 18000×3800×3950 |
