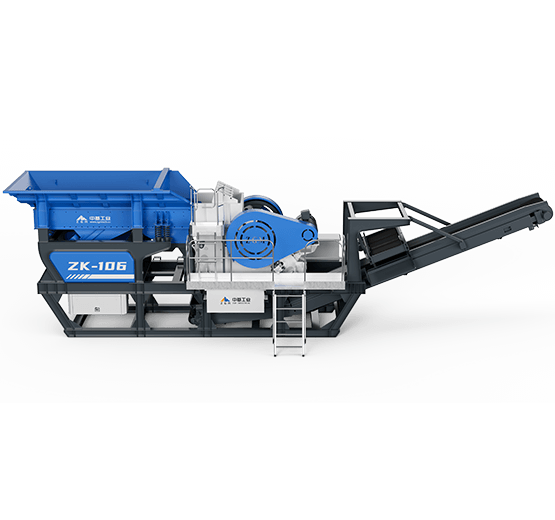

ZK-J series module type jaw crushing mobile station is a framable crushing station mainly launched by ZGM industrial according to customers' needs for site, production cycle, operation characteristics, transition and rapid production.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining

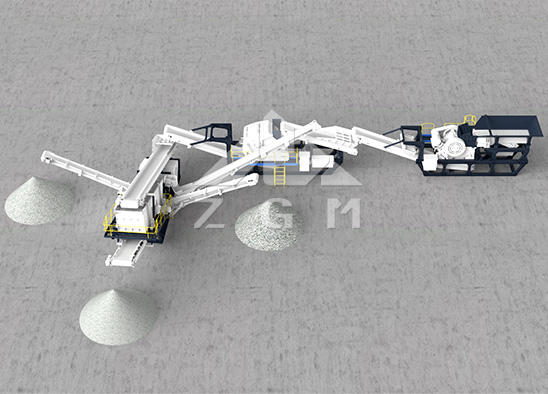

ZK-J series module type jaw crushing mobile station is a framable crushing station mainly launched by China Base Industry according to customers' needs for site, production cycle, operation characteristics, transition and rapid production. This crushing station covers a small space, low investment cost. And it can meet the container, flat truck and other transport modes. The machine realizes the no-foundation installation on the production site, saves the production cost and time of concrete foundation, effectively avoids the repetitive infrastructure investment, and greatly reduces the pre-production cost.
The whole machine has strong integration and special modular design, saving about 80% of organization and installation time, and saving about 60% of installation labor cost.
Adopt high quality thickened frame type steel frame structure to protect smooth operation and extend the service life of equipment.
The modular frame crushing station is easy to disassemble and transfer, and can be quickly moved to a new working location by means of transport.
Various process plan configuration, each module part can be applied to a single multi-terminal online application, according to the needs of the formation of different crushing and screening system.
| Model | Main machine model | Main belt conveyor | Feeding capacity (t/h) | Max. feeding size (mm) | Capacity (t/h) | Adjusting range | Main machine power(kw) | Whole machine power(kw) | Transportation dimension (L×W×H)(mm) |
| ZK-J96 | J6S96 | B800*9米 | 300 | 600 | 100-330 | 70-200 | 90 | 115.5 | 13000*5300*3950 |
| ZK-J106 | J6S106 | B1000*9米 | 430 | 650 | 140-420 | 70-200 | 110 | 137.5 | 14000*5300*3950 |
| ZK-J116 | J6S116 | B1200*10米 | 600 | 680 | 170-600 | 80-200 | 132 | 164.5 | 15000*6000*4300 |
