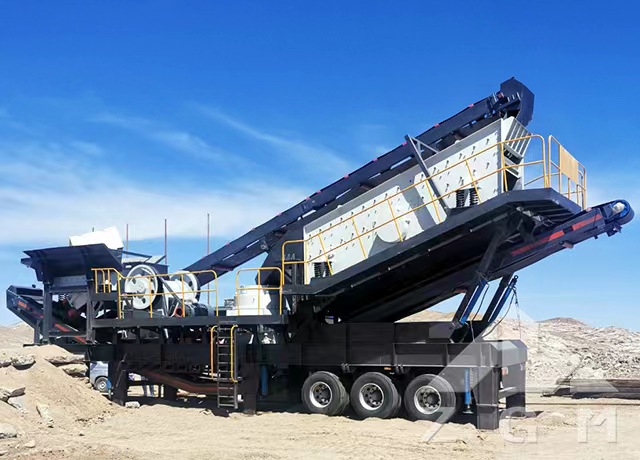

ZY-4 series mobile station is one integrated design on customer's request, in traditional production line use 2-3 vehicles for production, ZY-4 combines them together.
Limestone
Basalt
Granite
Pebbles
Construction
Power
Dry Mix
Chemica
Building
Mining

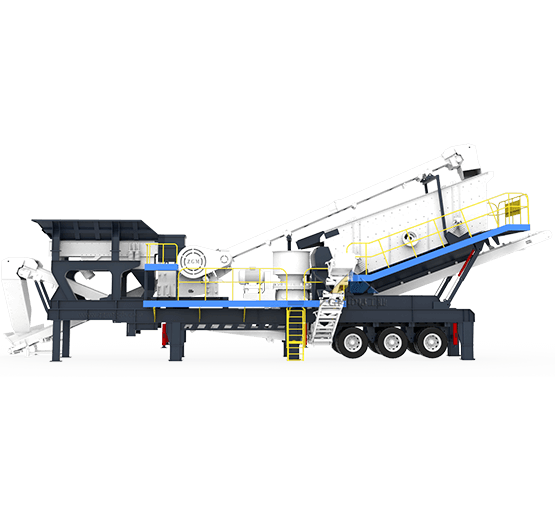

ZY-4 series mobile station is one integrated design on customer's request, in traditional production line use 2-3 vehicles for production, ZY-3 Series mobile station combines them to together, eliminates obstacles of crushing site, environment, complex foundation, steel frame foundation, and etc. It can be used in the operation of mobile crushing line, such as solid waste treatment of urban buildings, highway, railway, hydro power engineering and so on, breaking the limitation of small site.

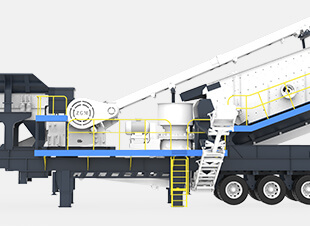

Complete feed, crushing, screening process design to meet the customer's engineering stone processing and construction waste crushing integrated needs.

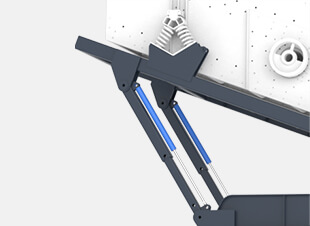

The hydraulic and mechanical support provided in the screening system can ensure the stability during operation, hydraulic lifting can flexible switch the work mode.

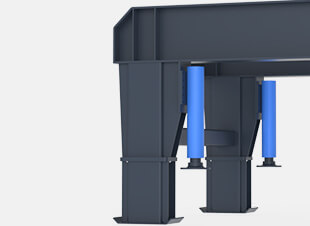

Each leg can rise independently, which can effectively to avoid the offset of support ground uneven and uneven intensity.

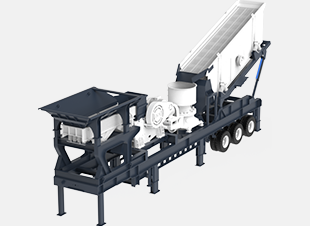

It can production directly without external belt conveyor, overload and iron removal protection system can protect the equipment from damage.
Model | Feeder Model | Primary Crusher | Second Crusher | Sreen Model | Iron Remover | Belt Conveyors | Frame | Capacity(t/h) | Hydraulic system |
ZY-4 E57C75 | GZD3090 | PE500x750 | CS75 | 3YS1548 | RCYD(C)-6.5 | 5 | Triaxial | 60-90 | Hydraulic lift |
ZY-4 J80C75 | GZD3090 | J6S80 | CS75 | 3YS1548 | RCYD(C)-6.5 | 5 | Triaxial | 70-100 | Hydraulic lift |

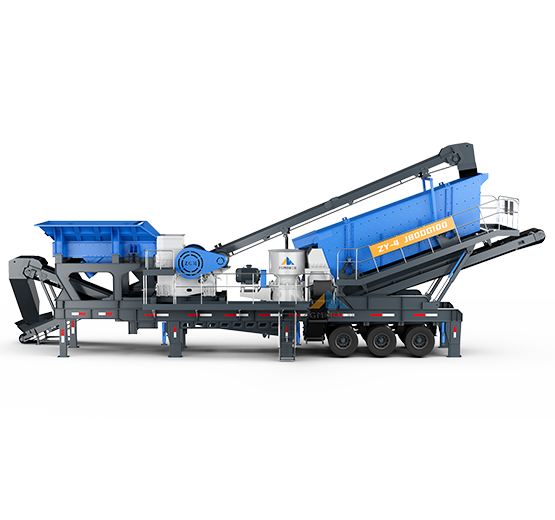

ZY-4 J80DG100 | GZD3896 | J6S80 | DG100 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 80-120 | Hydraulic lift |
ZY-4 E90DG100 | GZD3896 | PE600x900 | DG100 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 100-120 | Hydraulic lift |
ZY-4 E90DG160 | GZD3896 | PE600x900 | DG160 | 3YS1560 | RCYD(C)-6.5 | 5 | Triaxial | 150-180 | Hydraulic lift |
